FFD低噪声幅流风机 HyperLink
产品用途和特点(Product use and characteristics)

FFD系列冷却风机主要用于干式变压器冷却增容及电子设备、配电柜、高低、压开关柜等产品的冷却降温等作用。用于干式变压器时,风机置于变压器线圈下部两侧,将冷风直接吹进变压器的线圈高、低压冷却风道,散热效果明显,可提高干式变压器的输出功率40-50%,从而可大大提高干式变压器的承载能力、并延长了干式变压器的使用寿命,是国内外厂家普遍采用的最经济有效的方式。

FFD series cooling blowers mainly used for dry type transformer cooling capacity and electronic equipment, power distribution cabinet, high and low voltage switch cabinets and other products, cooling effect. For the dry-type transformer, fan are arranged at both sides of the lower part of the transformer coil, cold wind blowing directly into the transformer coil high, low pressure cooling air duct, the radiation effect is obvious, can increase the output power of 40-50% dry type transformer, which can greatly improve the bearing capacity of dry type transformer, dry-type transformer and prolong the service life, is a commonly used at China and abroad manufacturers of the most effective and economic way.

我公司生产的FFD系列干变冷却风机依据行业标准(JB/T8971-1999),通过电脑优化组合设计,使其风量更大、噪音更低,进一步提高了风压、降低了能耗,FFD系列干变冷却风机的外壳采用了优质铝合金型材和不锈钢,结构紧凑、外形美观、安装简便,寿命长,从而为FFD系列干变冷却风机长时间在较恶劣环境下平稳运行提供了可靠的保障。风机开、停及变压器的超温报警、超温跳闸等功能有温控装置提供。

Our company produces FFD series of dry cooling fan based on industry standards (JB/T8971-1999), through the computer optimization design, make its volume larger, lower noise, and further improve the wind pressure, reducing energy consumption, FFD series of dry cooling fan shell adopts the high quality aluminum and stainless steel, with compact structure, beautiful appearance, convenient installation, long service life, thus providing a reliable guarantee for the FFD series of dry cooling fan in a harsh environment runs stably in a long time. And the transformer fan on, stop over temperature alarm, over temperature tripping function offered by temperature control device.

冷却风机使用条件(Cooling fan operating conditions)
1、 环境温度应75ºC≥-40ºC。(Environmental temperature 75 º C º C ≥ -40)
2、 通过冷却风机的工业气体不允许有强酸、强碱及各种溶液。(Through the industrial gas cooling fan does not allow to have the strong acid, strong alkali and various solutions.)
3、 不允许有沙尘等杂物掉入风机内,以免造成风机烧毁及扇叶断裂。(Dust and debris into the air blower is not permitted, in order to avoid wind machine burned and fan blade fracture.)
安装与维护(Installation and maintenance)
1、 安装前应首先检查是否因包装运输造成损坏、变形、如有损坏或变形应修复后安装使用。(Before installation should firstly check for transport packaging damage, deformation, such as damage or deformation should be repaired after installation.)
2、 然后再检查各零件及螺丝是否有松动;叶片与风筒之间是否相碰或移位,若相碰或移位应进行调整后方可安装。(Then check each part and see if the screw is loose; between the blade and the air duct is touching or shift, if encounter or shift should be adjusted before installation.)
3、 冷却风机安装后应进行试机,待风机运行正常后再进行联机使用。(After cooling fan installed and should be for a trial, please wait for the operation of the wind turbine back to normal , then move on to the online use.)
4、 风机长期置放重新使用时,应对风机进行检查试运行若无异常现象,方可联机使用。(Reusing for the fan after long-term placement, please check wind turbine for an trial if no abnormal phenomenon occurs, then can be used in online.
5、风机安装完毕后应将接线合密封,以防接线合渗漏造成短路烧毁电机。(Fan after installation should be sealed to prevent the wiring and leakage caused by short circuit burned motor.)
搬运和存放(Handling and storage)
1、 在搬运过程中,要注意轻拿轻放,按照包装箱的标志和要求搬运和放置,切勿倒置和立置。(In the process of handling, we should pay attention to handle gently, carry and placed according to mark packing box and carry requirement, be sure not to place upside down and in the vertical position.)
2、 在搬运过程中应避免强烈冲击和剧烈震动,以防包装葙和产品破损。(In the process of handling should avoid strong shock and vibration, to prevent the packing box and product damage.)
3、风机应存放于透风、干燥没有腐蚀性气体处,避免雨淋和阳光暴晒。(The wind turbine shall be stored in ventilated, dry and no corrosive gas, avoid rain and sun exposure.)
订货须知(ordering instruction)
1、 订货时请根据使用要求和变压器的容量及结构形式,参照资料提供的产品型号选型,我公司也可根据您的使用规格进行定制。(Please ordering by operational requirement according to the capacity and structure requirements of transformer, product type selection please refers to information as attached, our company also can be customized according to your specifications.)
2、我公司根据订单或订货合同在三到七天内交货,定制产品在十五天内交货。(Our company according to the delivery order or purchase contract deliver the goods in three to seven days, and customized product delivery within fifteen days.)售后服务(after-sale service; after service)
1、我公司承诺自购机之日起,因产品组件质量原因并非人为故障,一年内保修。(Our company promises from the purchase date, because the product assembly quality and non-human failure reason, one year warranty will be provide.)
2、超出保修期出现故障的,我公司实行免费维修,如果需要更换零部件的收取零部件成本费、运费自理。(Beyond the failure of the warranty, my company provide free repair, if you need to replace the parts charged parts cost, freight themselves.)
郑重声明(Declaration)
1、 我公司保修对象仅适用于购买我公司产品的用户,人为故障及不属于我公司产品组件质量原因造成的故障,不属保修范畴。(Our company warranty applies only to buy my company product users, warranty will not include for fault human failure and does not belong to the product assembly quality reasons.)
2、 为确保您的利益,未经我公司同意请不要自行拆卸产品上的任何零部件,否则,将视为自动放弃保修之权利。(To ensure that your interests, without our consent please do not disassemble any parts, products, otherwise, will be considered as a give up of warranty rights.)
产品型号及含义 Product Model and Definition 产品型号及含义 Product Model and Definition
实例:FFD08-50/B表示:低噪声幅流风机、叶轮直径80cm、出风口长度50cm、电机在左边 For example: According to FFD08-50/B: low noise radial flow fan, impeller diameter 80cm, outlet length 50cm, motor in the left side.(人的主视方向风机与吹风方向同向时,电机在右端为A型、电机在左端为B型 The main direction of fan and blower motor in the same direction, the right end as type A, type B in the left motor) 技术参数 Technical parameter
型号 Model 电压 V 电流 ≤A 转速 R/MIN 频率 Hz 功率 W 风量 ≧M/H 噪音 ≤db 重量 Kg
FFD08-35 220 0.4 1400 50 40 520 62 4
FFD08-50 220 0.4 1400 50 40 700 62 4.5
FFD08-70 220 0.4 1400 50 40 920 62 5
FFD10-50 220 0.5 1400 50 90 1500 62 7
FFD10-68 220 0.5 1400 50 90 1300 62 7.5
FFD10-78 220 0.5 1400 50 90 1450 62 8.2
FFD10-98 220 0.5 1400 50 90 1880 62 8.9

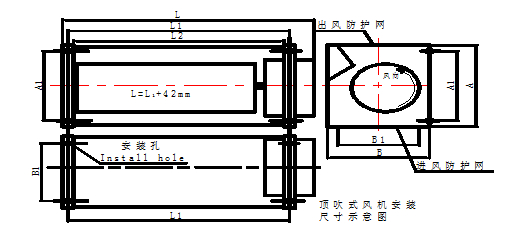

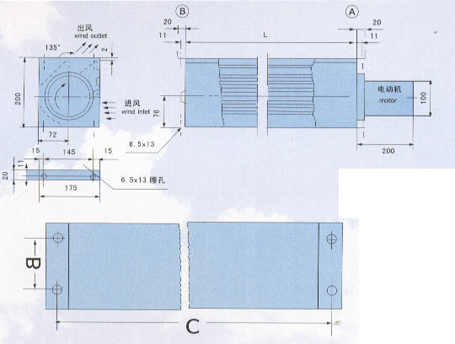

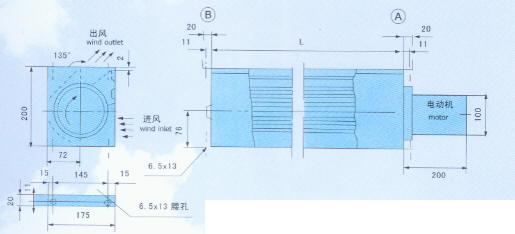

外型尺寸及安装尺寸(mm) Outline dimensions and mounting dimensions(mm)
型号Model A A1 B B1 L L1 L2 安 装 孔mounting hole
FFD08-35 160 / 130 100 410 370 350 4-Ф7×9
FFD08-50 160 / 130 100 560 520 500 4-Ф7×9
FFD08-70 160 / 130 100 760 720 700 4-Ф7×9
FFD10-50 180 / 150 70 560 520 500 4-Ф7×9
FFD10-68 200 / 145 145 740 700 680 4-Ф7×9
FFD10-78 200 / 145 145 840 800 780 4-Ф7×9
FFD10-98 200 / 145 145 1040 1000 980 4-Ф7×9
